underline;">tabulka datové propustnosti
|
|
|
|
|
|
|
|
Specifications
|
|
559px;">
|
|
|
|
|
|
|
|
549.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
260.567px;">Product code |
|
|
|

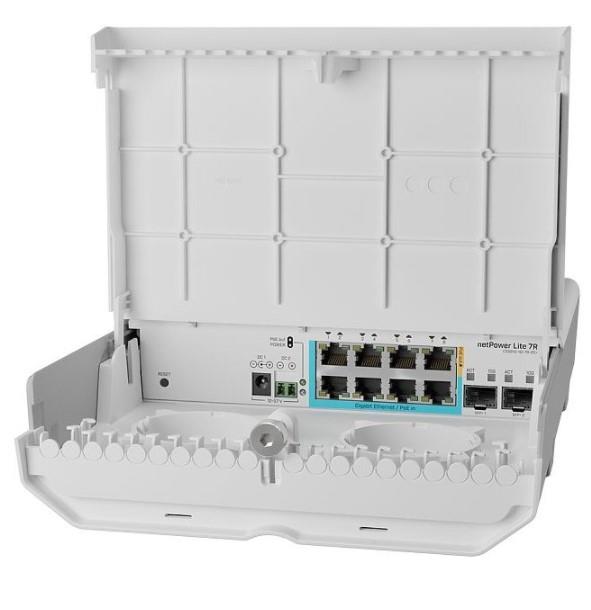

283.633px;">CSS610-1Gi-7R-2S+OUT |
|
|
|
|
|
|
|
260.567px;">Dimensions |
|
|
|
283.633px;">304 x 212 x 71 mm |
|
|
|
|
|
|
|
260.567px;">Operating System |
|
|
|
283.633px;">SwitchOS Lite |
|
|
|
|
|
|
|
260.567px;">Storage size |
|
|
|
283.633px;">64 KB |
|
|
|
|
|
|
|
260.567px;">Storage type |
|
|
|
283.633px;">FLASH |
|
|
|
|
|
|
|
260.567px;">MTBF |
|
|
|
283.633px;">Approximately 200'000 hours at 25C |
|
|
|
|
|
|
|
260.567px;">Tested ambient temperature |
|
|
|
283.633px;">-40°C to 70°C |
|
|
|
|
|
|
|
|
|
|
Powering
|
|
556px;">
|
|
|
|
|
|
|
|
546.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
257.567px;">Number of DC inputs |
|
|
|
283.633px;">3 (DC jack, 2-pin terminal, PoE-IN) |
|
|
|
|
|
|
|
257.567px;">DC jack input Voltage |
|
|
|
283.633px;">12-57 V |
|
|
|
|
|
|
|
257.567px;">2-pin terminal input Voltage |
|
|
|
283.633px;">12-57 V |
|
|
|
|
|
|
|
257.567px;">Max power consumption |
|
|
|
283.633px;">29 W |
|
|
|
|
|
|
|
257.567px;">Max power consumption without attachments |
|
|
|
283.633px;">7 W |
|
|
|
|
|
|
|
257.567px;">FAN count |
|
|
|
283.633px;">Passive |
|
|
|
|
|
|
|
257.567px;">PoE in |
|
|
|
283.633px;">Passive PoE |
|
|
|
|
|
|
|
257.567px;">PoE in input Voltage |
|
|
|
283.633px;">12-57 V |
|
|
|
|
|
|
|
|
|
|
PoE-out
|
|
554px;">
|
|
|
|
|
|
|
|
544.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
298.117px;">PoE-out ports |
|
|
|
241.083px;">Ether8 |
|
|
|
|
|
|
|
298.117px;">PoE out |
|
|
|
241.083px;">Passive PoE |
|
|
|
|
|
|
|
298.117px;">Max out per port output (input 18-30 V) |
|
|
|
241.083px;">600 mA |
|
|
|
|
|
|
|
298.117px;">Max out per port output (input 30-57 V) |
|
|
|
241.083px;">450 mA |
|
|
|
|
|
|
|
|
|
|
Ethernet
|
|
546px;">
|
|
|
|
|
|
|
|
536.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
458.033px;">10/100/1000 Ethernet ports |
|
|
|
73.1667px;">8 |
|
|
|
|
|
|
|
458.033px;">Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
|
|
|
73.1667px;">7 |
|
|
|
|
|
|
|
458.033px;">Number of 1G Ethernet ports with PoE-out |
|
|
|
73.1667px;">1 |
|
|
|
|
|
|
|
|
|
|
Fiber
|
|
555px;">
|
|
|
|
|
|
|
|
545.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
257.567px;">SFP+ ports |
|
|
|
282.633px;">2 |
|
|
|
|
|
|
|
|
|
|
Certification & Approvals
|
|
552px;">
|
|
|
|
|
|
|
|
542.8px;" colspan="2">Details
|
|
|
|
|
|
|
|
|
|
|
|
258.583px;">Certification |
|
|
|
278.617px;">CE, EAC, ROHS |
|
|
|
|
|
|
|
258.583px;">IP |
|
|
|
278.617px;">IP54 |
|
|
|
|
|
|
|
|
|
|
|
